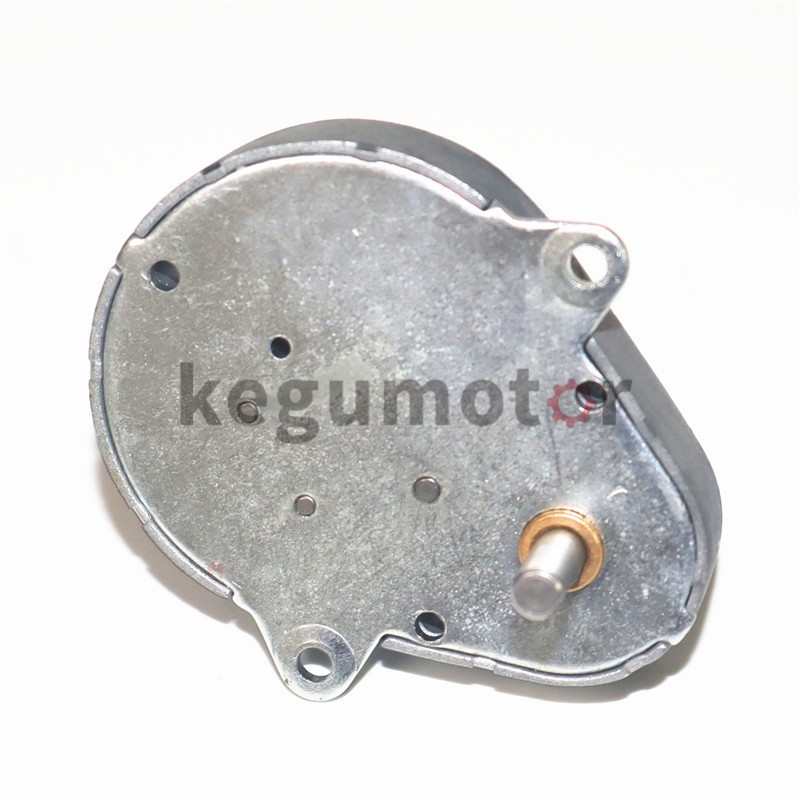

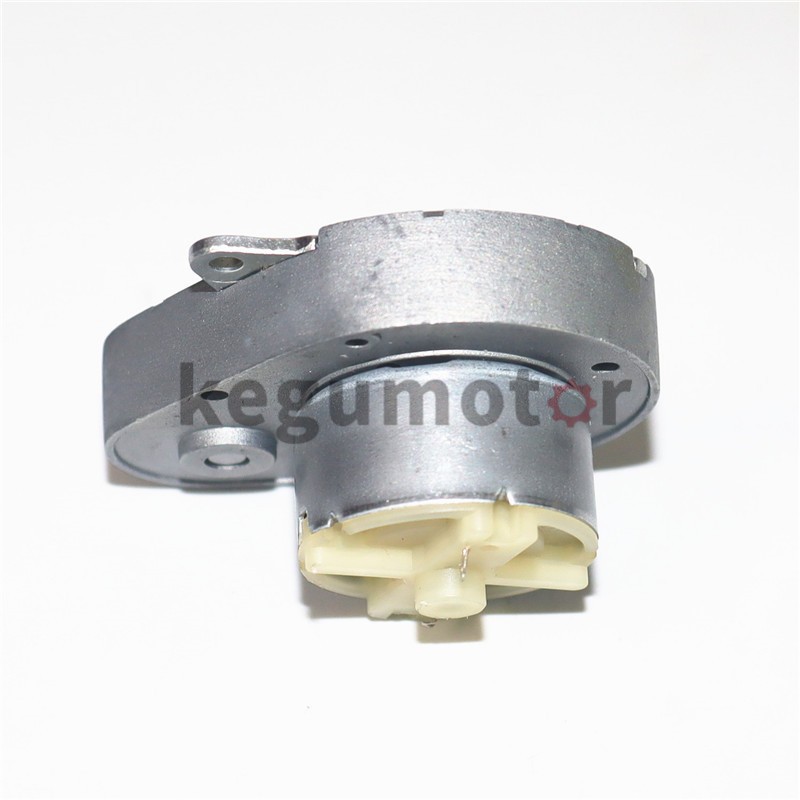

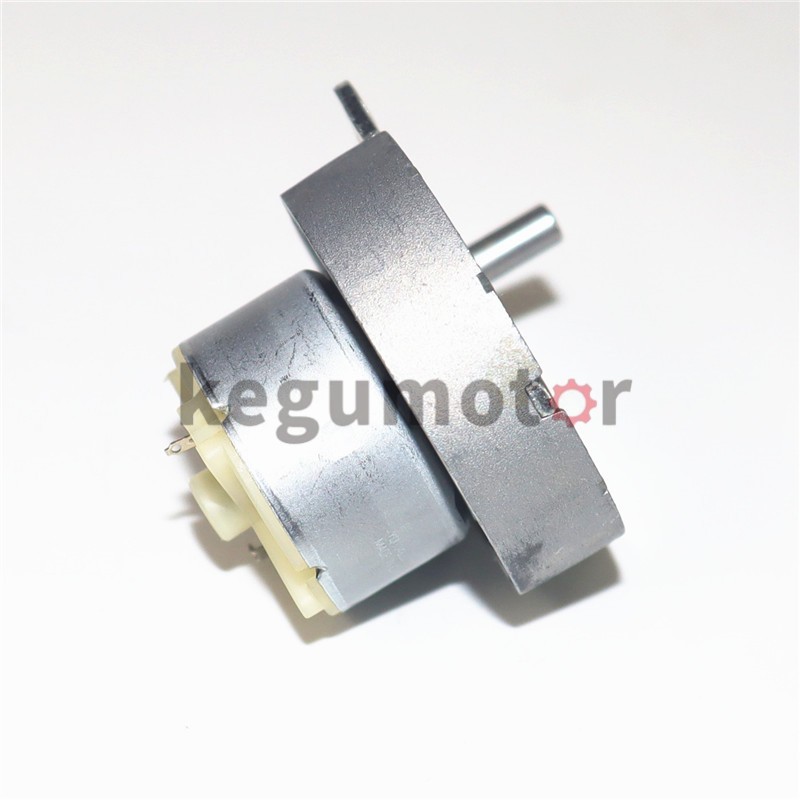

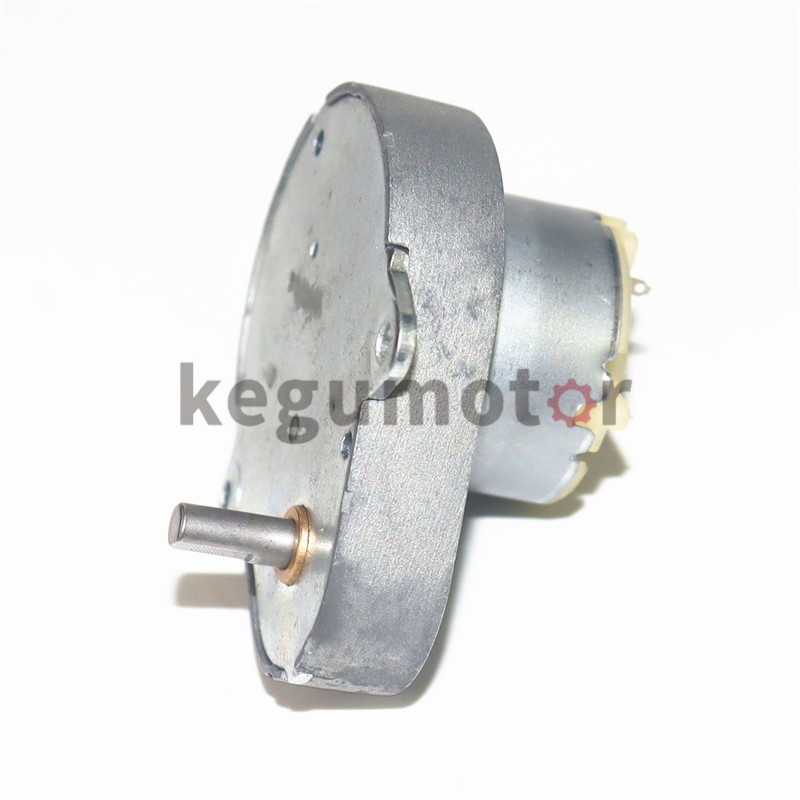

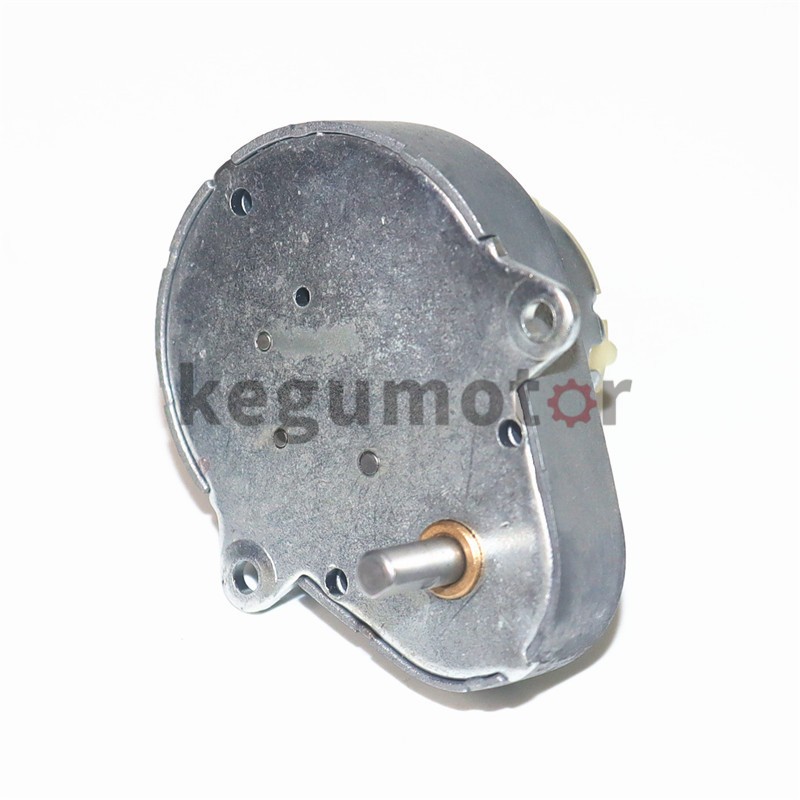

48mm Precision DC Gear Motor With Metal Gearbox KG-48E500

48mm Precision DC Gear Motor With Metal Gearbox KG-48E500

Product Details:
Place of Origin: China
Brand Name: Kegu Motor
Certification: RoHS / ISO9001
Model Number: KG-48E500
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiation
Packaging Details: TBD
Delivery Time: 30 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500kpcs/month

Product description:KG-48E500 48mm metal gearmotor, 500 encoder gear motor
mini 48mm reduction gearbox motor with magnet encoder 12PPR magnet encoder

48mm Mini DC Gear Motor – 500 Type Performance

1. Rated Voltage: 6

2. No Load Speed: 4.2 rpm
3. No Load Current: 0.02A
4. Rated Load Speed: 3.4 rpm

5. Rated Load Current: 0.09A
6.Rated torque: 4.4 kg.cm
7.Gear ratio: 640:1
8.Gearmotor length: 39.0 mm

Motor model:	KG-48E500
L1 (Motor Body + Gearbox):	39.0mm
L2 (Motor Body):	19.5 mm
Shaft Diameter:	2.5mm; D-section=2.0mm
Shaft Length:	48mm
Total Weight:	10.0g
Motor voltage range:	12.0-24.0V
Motor rated voltage:	6.0V
Motor speed (approx):	2700 rpm
Gearbox number of layers	3
Gearbox gear ratio:	1:640
No load voltage:	6.0V
No load speed:	4.2 rpm
No load current (approx):	0.02A
Output max torque (approx):	35kg.cm

Features:

DC Gear Motor with Encoder 12PPR or Custmoized Encoder

Output power 0.01-0.2W

CW/CCW Bi-direction

10/1-1000/1 reduction ratio

Coreless dc motor

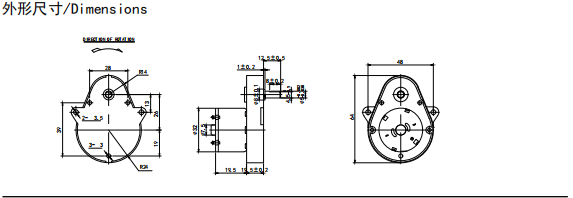

Miniature Geared Motor Outline Drawing

Gearbox Specifications of 48mm metal gearmotor:

Outer diameter	48mm
Material	Metal
Direction of rotation	cc&ccw
Gear backlash	≤3°
Bearing	Porous Bearing	Rolling bearing
Axial endplay	≤0.3mm	≤0.2mm
Radial loading on output shaft	≤0.3N	≤4N
Operating temperature range	-20……+85℃

Motor specifications:

Motor specifications
Motors(Optional)	DC brush motor， Stepper motor,Coreless motor
Voltage(Optional)	0.0-24.0V
Input speed	≤30000rpm
Current	100MA max

Motor Performance:

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY			STALL
	OPERATING RANGE	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	TORQUE	CURRENT
	V		r/min	A	r/min	A	kg.cm	kg.cm	A
KG-48E500-01	0.0-24.0	6.0	4.2	0.02	3.4	0.09	4.4	35	0.35
KG-48E500-02	0.0-24.0	6.0	5.7	0.028	4.8	0.13	5.5	35	0.62

Above specifications are subject to change without notice, just for reference and customizable according to requirements.

Shen Zhen Ke Gu Technology Co.,ltd provide small gearmotors have high performance for any industry. Best quality assured. Kegu-motor provides OEM & Custom gear motors. Varied custom sizes geared motors for the design of your prototype applications. You can get a free gearmotor quote by using bottom form, just tell us which geared motor model your are interested or tell us the torque, speed, reduction rito, voltage, size you need of the motors with gears, and you will receive a professional support in 24 hours.
