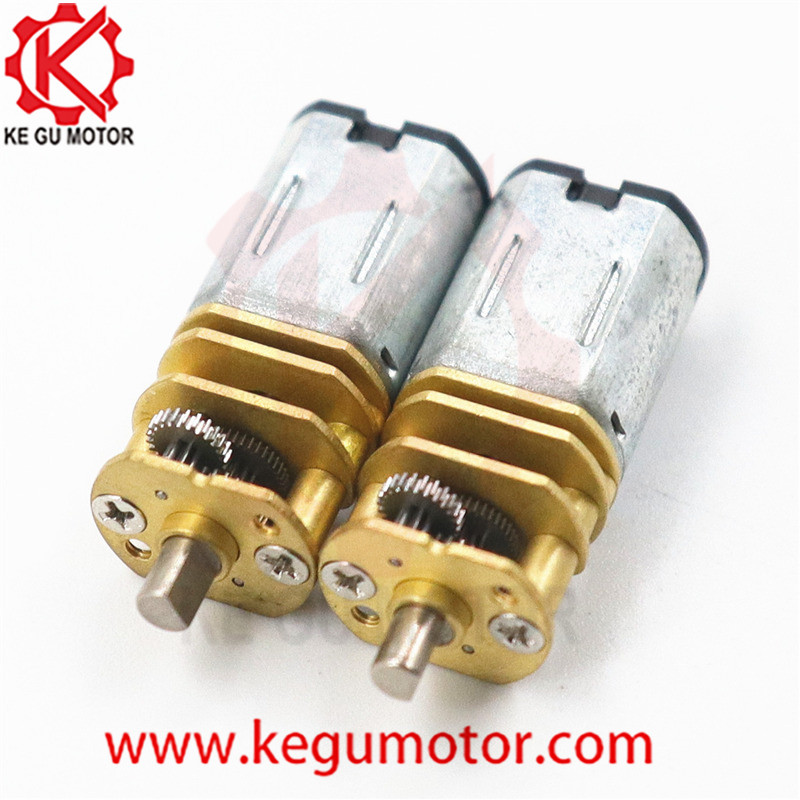

10mm Precision DC Gear Motor With Metal Gearbox KG-10FM10

10mm Precision DC Gear Motor With Metal Gearbox KG-10FM10

Product Details:
Place of Origin: China
Brand Name: Kegu Motor
Certification: RoHS / ISO9001
Model Number: KG-10FM10
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiation
Packaging Details: TBD
Delivery Time: 30 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500kpcs/month

Product description:KG-10FM10 10mm metal gearmotor
mini 10mm reduction gearbox motor

10mm Mini DC Gear Motor – M10 Type Performance

1. Rated Voltage: 3.0

2. No Load Speed: 69rpm
3. No Load Current: 55 mA
4. Rated Load Speed: 40 rpm

5. Rated Load Current: 260 mA
6.Rated torque:300g.cm
7.Gear ratio:250:1
8.Gearmotor length:21.8mm

Motor model:	KG-10FM10
L1 (Motor Body + Gearbox):	21.8mm
L2 (Motor Body):	12.8mm
Shaft Diameter:	2.5mm; D-section=2.0mm
Shaft Length:	10mm
Total Weight:	7.0g
Motor voltage range:	2.5-5.0V
Motor rated voltage:	3.0V
Motor speed (approx):	17,000 rpm
Gearbox number of layers	1
Gearbox gear ratio:	1:250
No load voltage:	3.0V
No load speed:	69 rpm
No load current (approx):	55mA
Output max torque (approx):	300g.cm

Features:

6mm plastic planetary gearbox

Output power 0.01-0.2W

CW/CCW Bi-direction

75/1-250/1 reduction ratio

Coreless dc motor

Miniature Geared Motor Outline Drawing

drawing of 10mm gear motor.png

Gearbox Specifications of 10mm metal gearmotor:

Outer diameter	10mm
Material	Metal
Direction of rotation	cc&ccw
Gear backlash	≤3°
Bearing	Porous Bearing	Rolling bearing
Axial endplay	≤0.3mm	≤0.2mm
Radial loading on output shaft	≤0.3N	≤4N
Operating temperature range	-20……+85℃

Motor specifications:

Motor specifications
Motors(Optional)	DC brush motor， Stepper motor,Coreless motor
Voltage(Optional)	3-12V
Input speed	≤30000rpm
Current	100MA max

Motor Performance:

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY					STALL
	OPERATING RANGE	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	TORQUE		CURRENT
	V		r/min	mA	r/min	mA	mN.m	g.cm	w	mN.m	g.cm	mA
KG-10FM10-01	2.0-4.0	3.0	172	60	100	260	15.3	150	0.19	40.8	400	500
KG-10FM10-02	2.0-4.0	3.0	69	60	40	270	30.4	300	0.20	71.6	700	500
KG-10FM10-03	1.0-3.0	2.5	104	55	56	180	15.0	147	0.11	25.3	250	210
KG-10FM10-04	1.0-3.0	2.5	42	60	23	190	30.0	294	0.12	55.2	550	210

Above specifications are subject to change without notice, just for reference and customizable according to requirements.

Shen Zhen Ke Gu Technology Co.,ltd provide small gearmotors have high performance for any industry. Best quality assured. Kegu-motor provides OEM & Custom gear motors. Varied custom sizes geared motors for the design of your prototype applications. You can get a free gearmotor quote by using bottom form, just tell us which geared motor model your are interested or tell us the torque, speed, reduction rito, voltage, size you need of the motors with gears, and you will receive a professional support in 24 hours.
