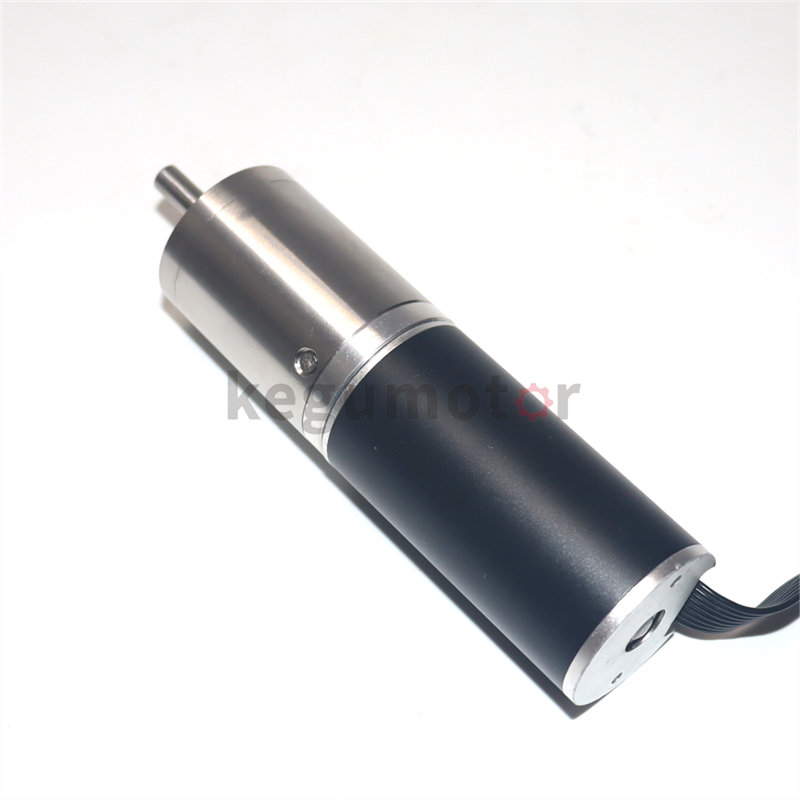

KG-32P3260RB 24mm Diameter 53mm Length 12V Coreless Gear Motor

Coreless DC gear motor is made up two parts, precision gearboxs and a coreless dc motor.
Coreless DC gear motor is a type of coreless motor that does not have a winding around a central core. The stator of a coreless DC motor typically consists of two permanent magnets that are mounted on opposite sides of the motor. The rotor of a coreless DC gear motor typically consists of a permanent magnet that is mounted on a shaft.

What are advantages of coreless gear motors: Coreless DC motor doesn’t have a winding around a central core, which means that it can be more efficient than a traditional DC motor. Brush motors also tend to be smaller and lighter than traditional DC motors.

High Performance Low Consumption Coreless Gear Motors,DC Gearmotor Supplier

Coreless DC gear motor is made up two parts, precision gearboxs and a coreless dc motor.

High Performance Low Consumption Coreless Gear Motors with encoder 1024ppr, magnet encoder

Brushless Coreless DC gear motor is made up three parts, precision gearboxs ,a brushless coreless dc motor and magnet encoder.

Combination: Precision Gearboxes,Drive Electronics and Encoders

Kegumotor is committed to working with you to design and manufacture a coreless brush motor solution specific to your application needs.

Brush Type: Carbon / Precious Metal / Other
Commutator Material: Precious Metal / Graphite / brushless
Nominal Voltage
Output load speed
Power Rating
No-Load and Maximum Current
Load Torque
Rotor Inertia
Ambient Temperature Range
Motor Shaft Material & Size
Motor Shaft Configuration: Offset / Concentric / D Cut / Round / Splined / Other
Overall motor size, Diameter (L, W, H)
Encoder Type: Optical / Hall Effect
Additional Assembly Requirements (lead wires, connectors, pulley, gear, etc.)

Ask 6V Coreless DC Motor With Encoder Datasheet & Price Now! Fast Reply Within Few Hours! Longer Working Time! Lower Current. New Design Support. Find Best 6V Coreless Gear Motor Seller From China. Premium Quality & Coreless DC Gear Motor Exporter.

32mm Brushless Coreless DC Gear Motor, Model 3260RB series

• Motor type: BLDC coreless motor with encoder

• Motor housing (D*F* L): Φ32*60mm

• Housing material: SECD-O

• Shaft (diameter): 6mm SUS304 steel (nickel coating)

• Way of commutation: Precious metal-brush

• Structure: 2-pole stator and hollow cup type

• Magnet type: Nd-Fe-B

• Rotation: CW/CCW and reversible

•

• Motor Name	KG-32P3260RB  coreless gear motor
  Typical Application	Medical equipment、 Home appliance、 Industrial automation
  Nominal voltage	12V
  No load current	490mA
  No load speed	265rpm
  Load torque	16 kg.cm
  Load speed	246rpm

  Induction of the High Torque 32mm Series Micro Brushless Coreless DC Gear Motor With Encoder 3260RB

  This type of 32mm series Brushless Coreless gear Motor will offer a good specification with high speed and torque to customer’s equipment and lead high precise, reliable control, lower vibration and noise on the tattoo Equipment which can offer the customer with good tattoo experience. We can make the customized shaft and holes at the front cover. Depending on the model, yet can nonetheless deliver the necessary performance – thanks to our high efficiency factors of up to 90 percent. Most of important, we can customize motor parameters for our customers which will give full play to product advantages.

  Specification of the High Torque 32mm Series Micro Brushless Coreless DC Gear Motor With Encoder 3260RB

  No.	Motor Model	Operating Voltage	Rated Voltage	No Load Speed	No Load Current	Stall Torque	Stall Current
  		V	V	r/min	A	Nm	A
  1	KG-32P3260RB-V1	12-18	18	862	0.49	7.6	50
  2	KG-32P3260RB-V2	12-24	24	900	0.30	7.8	41

  KG-32P3260RB 32mm Series  Brushless Coreless Gear Motor With Encoder Dimensions 3260RB

  Keywords:
  coreless gear motor with encoder, encoder gear motor,coreless dc gear motor, 12V gear motor,24V gear motor, 32mm motor

• This 32MM Series 3260RB coreless gear motor with encoder is small ,light, precision, reliable control and delicately operate, which can offer high torque and speed for tattoo equipment and medical equipment.

                  Small vibration offering the best tattoo experience for customer.

                  Reliable and stable with long lifetime.

                  100% complete inspection of the materials after we get from our suppliers and products before ex-factory to ensure the quality for our customer.

                  The perfect substitute for European motors which can save lots of time and cost for our customer.

     80% of coreless gear motors are customized. At present, the core key materials and components are still imported. KEGU MOTOR provide domestic customers to use international brand quality coreless motors with a higher performance, and continue to improve their product series . Prepare inventory according to plan, independently produce and process customized parts, so that the quality standards and process technology are consistent with the Swiss Maxon.
  Custom specification is also available for us.
       32mm Brushless Coreless Gear Motor with encoder, 32mm Hollow Cup Motor, Encoder gear motor 1024PPR. 32mm Slotless Gear Motor,32mm slotless brushless gear motor for Tattoo Machine,Hollow Cup Motor for Tattoo Machine,Tatto Machine Motor, Tatto Machine Coreless Motor, Tatto Machine Hollow Cup Motor,Coreless Gear Motor Manufacturer, Coreless Gear Motor Factory,Coreless Motor China Shenzhen Manufacturer Factory,Customized Motor,Custom Coreless Gearmotor

     Coreless brushed motors function similarly to traditional or cored brushed motors. With a coreless design, magnetic fields are induced by applying current and voltage to the rotor windings, which react with the  permanent magnet on the stator to convert electrical energy into mechanical energy. A coreless dc motor is typically constructed with rare earth magnets to maximize performance and mechanical strength from such a small form factor. An electric micro motor like this needs the best materials in order to have a high starting torque and rapid mechanical time constant.

     The removal of the iron core, within the housing cylinder, leads to other advantages as well. Armature Windings dissipate heat more efficiently without an iron core holding onto the heat in the middle of the motor. This improved thermal performance allows a coreless dc motor to to radiate its heat through the casing, removing the need for air holes of active cooling.  In turn the sealed casings help to reduce both audible noise as well as electrical noise or EMI, making coreless motor well suited for applications sensitive to electromagnetic interference.

  Coreless Motor Performance Curves

  A coreless motor's performance and gearbox performance are combined into one graph by displaying three specific parameters. These three parameters are speed, torque and efficiency. These performance curves are essential when selecting a motor for your application.





• Speed/Revolutions (N) – (unit: rpm) indicated as a straight line that shows the relationship between the motor’s torque and speed. It should be used near its peak efficiency to maximize the motor’s potential.

• Efficiency (η) – (unit: %) is calculated by the input and output values, represented by the dashed line. To maximize the motor’s potential it should be used near its peak efficiency.

• Torque (T) – (unit: gf-cm) this is the load borne by the motor shaft, represented on the X-axis.

• Current (I) – (unit: A) indicated by a straight line, from no load to full motor lock. This shows the relationship between amperage and torque.

• Output (P) – (unit: W) is the amount of mechanical energy the motor puts out.

Micro DC Coreless Gear Motor Structure

12V coreless motor is a high-speed, high-torque motor that is perfect for a wide range of applications. It features a high power density and low inertia, making it ideal for use in applications where space is limited. Additionally, the coreless design of this motor eliminates cogging and provides for smoother operation.

24mm Metal Coreless Gear Motor Mass Production
