KG-28P2845RB-EN 28mm Diameter 45mm Length 12V Coreless Gear Motor

Kegu Motor Shen Zhen Ke Gu Technology Co.,ltd is an experienced company that designs, develops and manufactures precision transmission systems, High precision brushless motors (EC motors), coreless motors, encoders,,coreless gear motor, and complete miniature and micro drive systems.Kegu Motor is an outstanding manufacturer in the area of micro coreless motor, DC motors, linear motor, coreless gear motor, planetary gear drive system.

Coreless DC gear motor is made up two parts, precision gearboxs and a coreless dc motor.
Coreless DC gear motor is a type of coreless motor that does not have a winding around a central core. The stator of a coreless DC motor typically consists of two permanent magnets that are mounted on opposite sides of the motor. The rotor of a coreless DC gear motor typically consists of a permanent magnet that is mounted on a shaft.

What are advantages of coreless gear motors: Coreless DC motor doesn’t have a winding around a central core, which means that it can be more efficient than a traditional DC motor. Brush motors also tend to be smaller and lighter than traditional DC motors.

High Performance Low Consumption Coreless Gear Motors with encoder 1024ppr, magnet encoder

Brushless Coreless DC gear motor is made up three parts, precision gearboxs ,a brushless coreless dc motor and magnet encoder.

Combination: Precision Gearboxes,Drive Electronics and Encoders

Kegumotor is committed to working with you to design and manufacture a coreless brush motor solution specific to your application needs.

Brush Type: Carbon / Precious Metal / Other
Commutator Material: Precious Metal / Graphite / brushless
Nominal Voltage
Output load speed
Power Rating
No-Load and Maximum Current
Load Torque
Rotor Inertia
Ambient Temperature Range
Motor Shaft Material & Size
Motor Shaft Configuration: Offset / Concentric / D Cut / Round / Splined / Other
Overall motor size, Diameter (L, W, H)
Encoder Type: Optical / Hall Effect
Additional Assembly Requirements (lead wires, connectors, pulley, gear, etc.)

Ask 6V Coreless DC Motor With Encoder Datasheet & Price Now! Fast Reply Within Few Hours! Longer Working Time! Lower Current. New Design Support. Find Best 6V Coreless Gear Motor Seller From China. Premium Quality & Coreless DC Gear Motor Exporter.

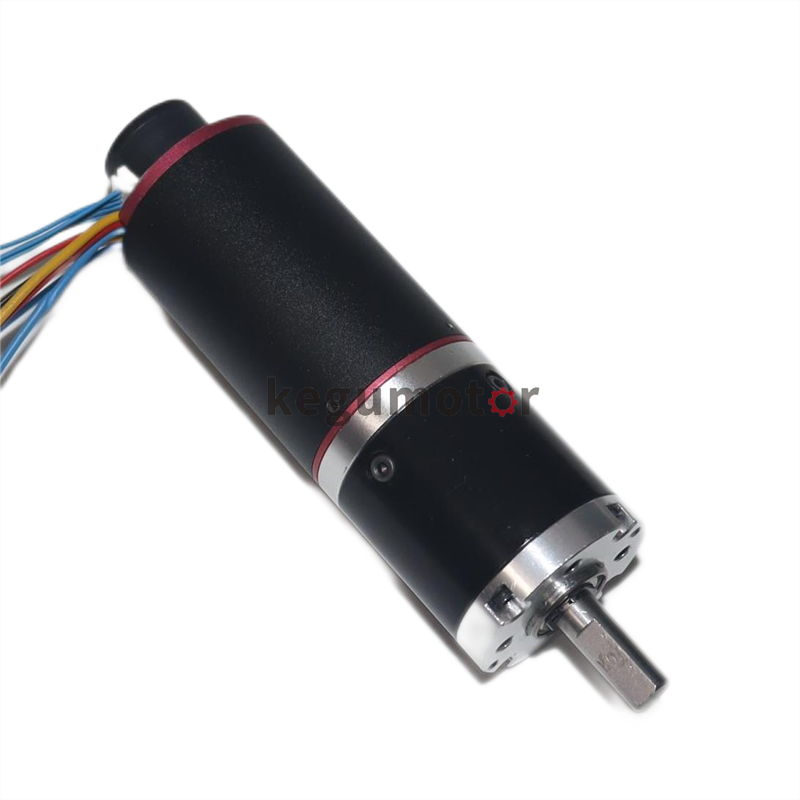

28mm Brushless Coreless DC Gear Motor, Model 2845RB series

  • Motor type: BLDC coreless motor with encoder

  • Motor housing (D*F* L): Φ28*45mm

  • Housing material: SECD-O

  • Shaft (diameter): 1mm SUS304 steel (nickel coating)

  • Way of commutation: Precious metal-brush

  • Structure: 2-pole stator and hollow cup type

  • Magnet type: Nd-Fe-B

  • Rotation: CW/CCW and reversible

  •

  • Motor Name

    KG-28P2845RB-EN
     coreless
    gear motor



    Typical Application

    Medical equipment、

    Home appliance、

    Industrial automation

    Nominal voltage

    12V

    No load current

    255mA

    Stall torque

    20 kg.cm

    Efficiency

    81%

    Induction of the High Torque 28mm Series Micro Brushless Coreless DC Gear Motor With Encoder 2845RB

    This type of 28mm series Brushless Coreless gear Motor will offer a good specification with high speed and torque to customer’s equipment and lead high precise, reliable control, lower vibration and noise on the tattoo Equipment which can offer the customer with good tattoo experience. We can make the customized shaft and holes at the front cover. Depending on the model, yet can nonetheless deliver the necessary performance – thanks to our high efficiency factors of up to 90 percent. Most of important, we can customize motor parameters for our customers which will give full play to product advantages.

    Specification of the High Torque 28mm Series Micro Brushless Coreless DC Gear Motor With Encoder 2845RB



    No.



    Motor Model

    Operating Voltage

    Rated Voltage

    No Load Speed

    No Load Current

    Stall Torque

    Stall Current

    V

    V

    r/min

    A

    Nm

    A

    1

    KG-28P2845RB-V1

    6-12

    12

    856

    0.25

    2.0

    20

    2

    KG-28P2845RB-V2

    12-24

    24

    856

    0.19

    2.1

    11

    KG-28P2845RB-EN 28mm Series  Brushless Coreless Gear Motor With Encoder Dimensions 2845RB

    Keywords:

    coreless gear motor with encoder, encoder gear motor,coreless dc gear motor, 12V gear motor,24V gear motor, 28mm motor

  • This 28MM Series 2845RB coreless gear motor with encoder is small ,light, precision, reliable control and delicately operate, which can offer high torque and speed for tattoo equipment and medical equipment.

                    Small vibration offering the best tattoo experience for customer.

                    Reliable and stable with long lifetime.

                    100% complete inspection of the materials after we get from our suppliers and products before ex-factory to ensure the quality for our customer.

                    The perfect substitute for European motors which can save lots of time and cost for our customer.

       80% of coreless gear motors are customized. At present, the core key materials and components are still imported. KEGU MOTOR provide domestic customers to use international brand quality coreless motors with a higher performance, and continue to improve their product series . Prepare inventory according to plan, independently produce and process customized parts, so that the quality standards and process technology are consistent with the Swiss Maxon.
    Custom specification is also available for us.
         28mm Brushless Coreless G
    ear Motor with encoder, 28mm Hollow Cup Motor, Encoder gear motor 1024PPR. 28mm Slotless Gear Motor,28mm slotless brushless gear motor for Tattoo Machine,Hollow Cup Motor for Tattoo Machine,Tatto Machine Motor, Tatto Machine Coreless Motor, Tatto Machine Hollow Cup Motor,Coreless Gear Motor Manufacturer, Coreless Gear Motor Factory,Coreless Motor China Shenzhen Manufacturer Factory,Customized Motor,Custom Coreless Gearmotor

       Coreless brushed motors function similarly to traditional or cored brushed motors. With a coreless design, magnetic fields are induced by applying current and voltage to the rotor windings, which react with the  permanent magnet on the stator to convert electrical energy into mechanical energy. A coreless dc motor is typically constructed with rare earth magnets to maximize performance and mechanical strength from such a small form factor. An electric micro motor like this needs the best materials in order to have a high starting torque and rapid mechanical time constant.

       The removal of the iron core, within the housing cylinder, leads to other advantages as well. Armature Windings dissipate heat more efficiently without an iron core holding onto the heat in the middle of the motor. This improved thermal performance allows a coreless dc motor to to radiate its heat through the casing, removing the need for air holes of active cooling.  In turn the sealed casings help to reduce both audible noise as well as electrical noise or EMI, making coreless motor well suited for applications sensitive to electromagnetic interference.

    Coreless Motor Performance Curves

    A coreless motor's performance and gearbox performance are combined into one graph by displaying three specific parameters. These three parameters are speed, torque and efficiency. These performance curves are essential when selecting a motor for your application.

    Gear Motor Performance Curves



    • Speed/Revolutions (N) – (unit: rpm) indicated as a straight line that shows the relationship between the motor’s torque and speed. It should be used near its peak efficiency to maximize the motor’s potential.

    • Efficiency (η) – (unit: %) is calculated by the input and output values, represented by the dashed line. To maximize the motor’s potential it should be used near its peak efficiency.

    • Torque (T) – (unit: gf-cm) this is the load borne by the motor shaft, represented on the X-axis.

    • Current (I) – (unit: A) indicated by a straight line, from no load to full motor lock. This shows the relationship between amperage and torque.

    • Output (P) – (unit: W) is the amount of mechanical energy the motor puts out.

Micro DC Coreless Gear Motor Structure


12V coreless motor is a high-speed, high-torque motor that is perfect for a wide range of applications. It features a high power density and low inertia, making it ideal for use in applications where space is limited. Additionally, the coreless design of this motor eliminates cogging and provides for smoother operation.



28mm Metal Coreless Gear Motor Mass Production
