25mm Precision DC Gear Motor With Metal Gearbox KG-25A370-EN

Product description:KG-25A370-EN 25mm metal gearmotor with encoder
mini 25mm  reduction gearbox motor with magnet encoder 12ppr

25mm Mini DC Gear Motor with Encoder – 370 Type Performance

1. Rated Voltage: 6.0

2. No Load Speed: 62rpm
3. No Load Current: 0.06 A
4. Rated Load Speed: 54 rpm

5. Rated Load Current:  0.386A
6.Rated torque:1.5kg.cm
7.Gear ratio:98:1
8.Gearmotor length:53.8mm

9. Encoder 2PPR

Features:

 DC Gear Motor with Encoder 12PPR or Custmoized Encoder

25mm metal gearbox

Output power 0.01-0.2W

CW/CCW Bi-direction

75/1-250/1 reduction ratio

Coreless dc motor

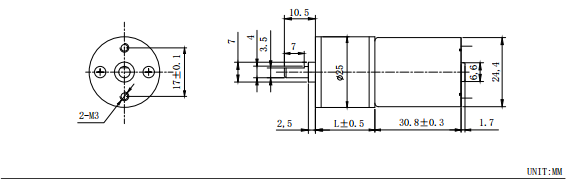

Miniature Geared Motor Outline Drawing

Gearbox Specifications of 25mm metal gearmotor with encoder:

Motor specifications:

Motor Performance:

Above specifications are subject to change without notice, just for reference and customizable according to requirements.

Shen Zhen Ke Gu Technology Co.,ltd provide small gearmotors have high performance for any industry. Best quality assured. Kegu-motor provides OEM & Custom gear motors. Varied custom sizes geared motors for the design of your prototype applications. You can get a free gearmotor quote by using bottom form, just tell us which geared motor model your are interested or tell us the torque, speed, reduction rito, voltage, size you need of the motors with gears, and you will receive a professional support in 24 hours.
