Product Details:
Place of Origin: China
Brand Name: Kegu Motor
Certification: RoHS / ISO9001
Model Number: KG-20A130
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiation
Packaging Details: TBD
Delivery Time: 30 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500kpcs/month

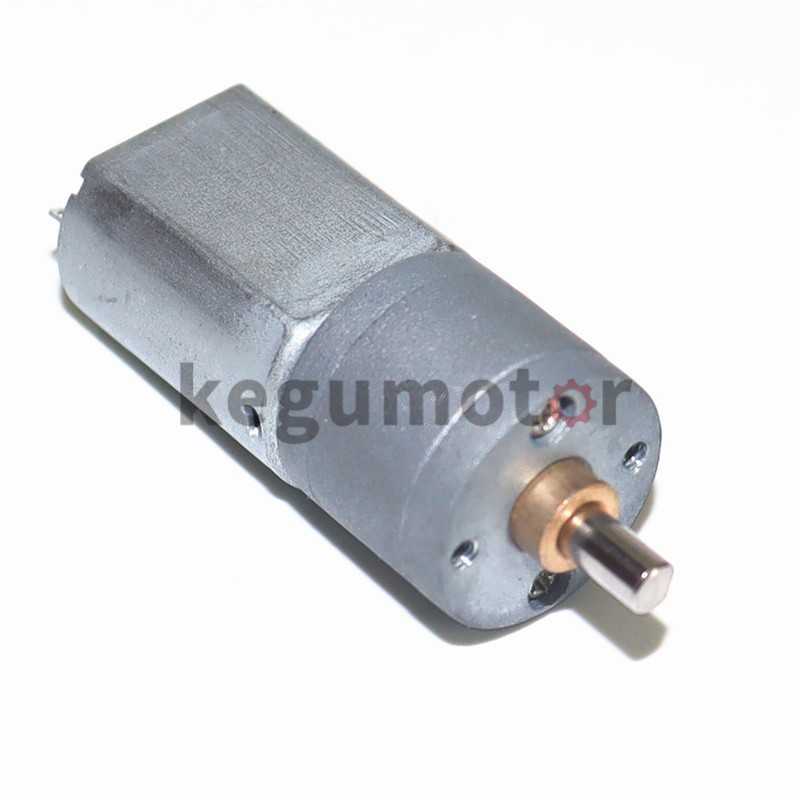

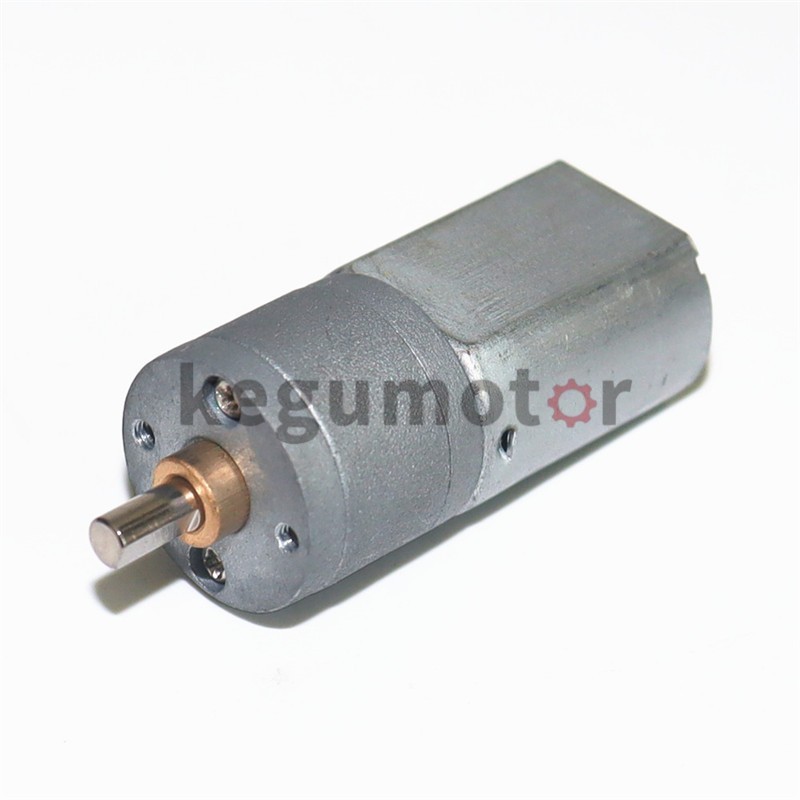

Product description:KG-20A130 20mm metal gearmotor, 130 encoder gear motor
mini 20mm reduction gearbox motor with magnet encoder 12ppr
20mm Mini DC Gear Motor – 130 Type Performance
1. Rated Voltage: 3.0
2. No Load Speed: 128rpm
3. No Load Current: 240 mA
4. Rated Load Speed: 104 rpm
5. Rated Load Current: 1.09 A
6.Rated torque: 1.0 kg.cm
7.Gear ratio: 100:1
8.Gearmotor length: 44mm
Motor model: | KG-20A130 |
L1 (Motor Body + Gearbox): | 44mm |
L2 (Motor Body): | 25mm |
Shaft Diameter: | 2.5mm; D-section=2.0mm |
Shaft Length: | 20mm |
Total Weight: | 10.0g |
Motor voltage range: | 2.5-6.0V |
Motor rated voltage: | 3.0V |
Motor speed (approx): | 12800 rpm |
Gearbox number of layers | 3 |
Gearbox gear ratio: | 1:100 |
No load voltage: | 3.0V |
No load speed: | 128 rpm |
No load current (approx): | 240mA |
Output max torque (approx): | 3.6kg.cm |
Features:
DC Gear Motor with Encoder 12PPR or Custmoized Encoder
Output power 0.01-0.2W
CW/CCW Bi-direction
10/1-1000/1 reduction ratio
Coreless dc motor
Miniature Geared Motor Outline Drawing
Gearbox Specifications of 20mm metal gearmotor:
Outer diameter | 20mm | |
Material | Metal | |
Direction of rotation | cc&ccw | |
Gear backlash | ≤3° | |
Bearing | Porous Bearing | Rolling bearing |
Axial endplay | ≤0.3mm | ≤0.2mm |
Radial loading on output shaft | ≤0.3N | ≤4N |
Operating temperature range | -20……+85℃ |
Motor specifications:
Motor specifications | |
Motors(Optional) | DC brush motor， Stepper motor,Coreless motor |
Voltage(Optional) | 3-12V |
Input speed | ≤30000rpm |
Current | 100MA max |
Motor Performance:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
| OPERATING RANGE | RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | TORQUE | CURRENT | |
| V | r/min | mA | r/min | A | kg.cm | kg.cm | A | ||
| KG-20A130-01 | 3.0-12.0 | 3.0 | 128 | 240 | 104 | 1.09 | 1.0 | 3.6 | 4.97 |
| KG-20A130-02 | 3.0-12.0 | 12.0 | 66 | 40 | 53 | 0.11 | 0.83 | 3.6 | 0.32 |
Above specifications are subject to change without notice, just for reference and customizable according to requirements.
