Product Details:
Place of Origin: China
Brand Name: Kegu Motor
Certification: RoHS / ISO9001
Model Number: KG-13A050
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiation
Packaging Details: TBD
Delivery Time: 30 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500kpcs/month

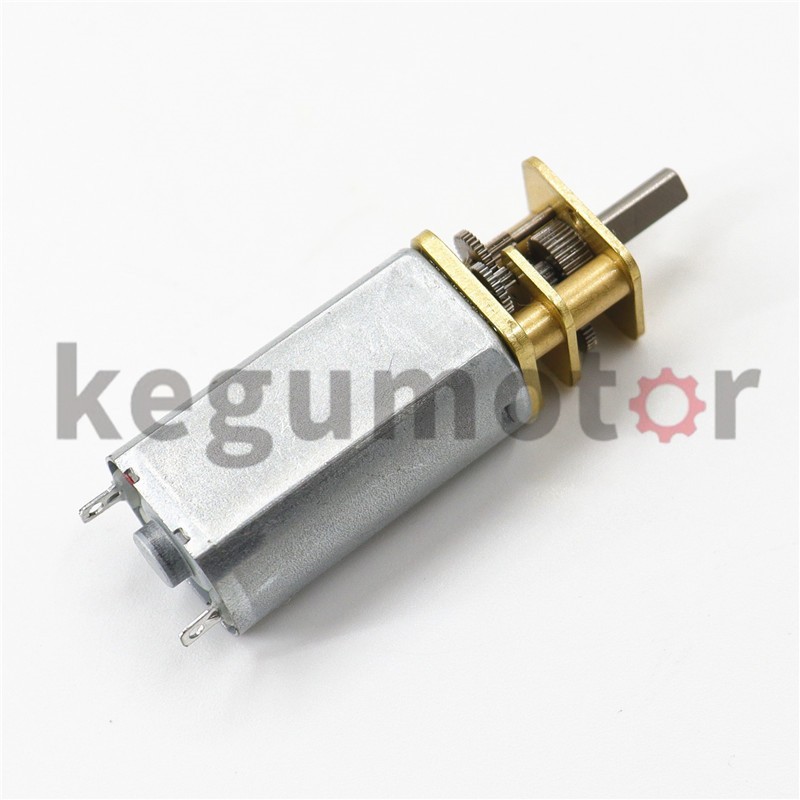

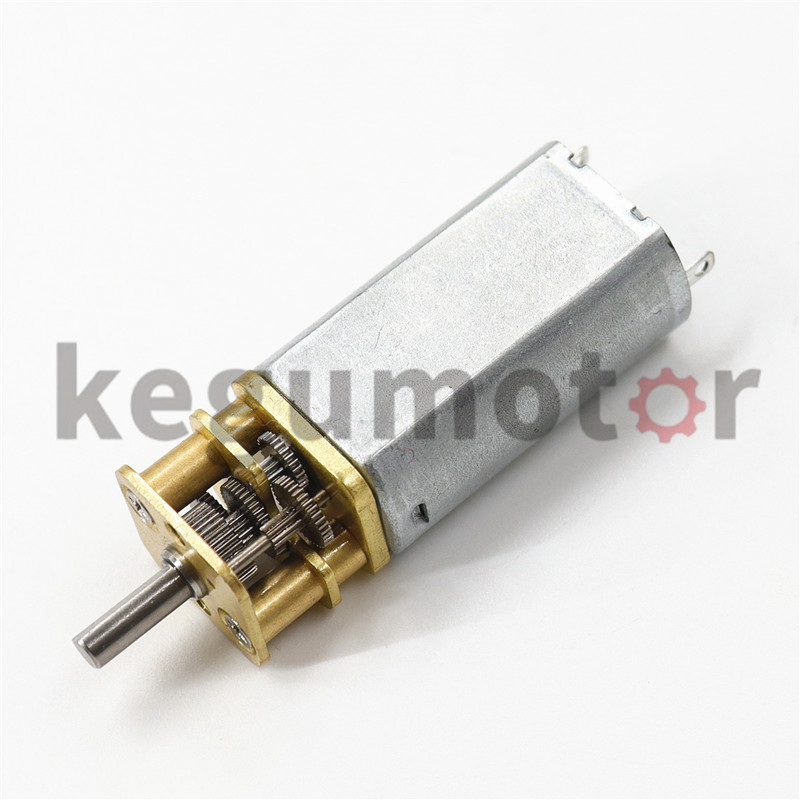

Product description:KG-13A050 13mm metal gearmotor, 050 encoder gear motor
mini 13mm reduction gearbox motor with magnet encoder 12ppr
13mm Mini DC Gear Motor – 050 Type Performance
1. Rated Voltage: 6.0
2. No Load Speed: 93rpm
3. No Load Current: 30 mA
4. Rated Load Speed: 72 rpm
5. Rated Load Current: 100 mA
6.Rated torque:1650g.cm
7.Gear ratio:100:1
8.Gearmotor length:37.9mm
Motor model: | KG-13A050 |
L1 (Motor Body + Gearbox): | 37.9mm |
L2 (Motor Body): | 26.9mm |
Shaft Diameter: | 2.5mm; D-section=2.0mm |
Shaft Length: | 13mm |
Total Weight: | 10.0g |
Motor voltage range: | 2.5-6.0V |
Motor rated voltage: | 6.0V |
Motor speed (approx): | 8200 rpm |
Gearbox number of layers | 3 |
Gearbox gear ratio: | 1:100 |
No load voltage: | 6.0V |
No load speed: | 93 rpm |
No load current (approx): | 30mA |
Output max torque (approx): | 1650g.cm |
Features:
DC Gear Motor with Encoder 12PPR or Custmoized Encoder
Output power 0.01-0.2W
CW/CCW Bi-direction
10/1-1000/1 reduction ratio
Coreless dc motor
Miniature Geared Motor Outline Drawing
Gearbox Specifications of 13mm metal gearmotor:
Outer diameter | 13mm | |
Material | Metal | |
Direction of rotation | cc&ccw | |
Gear backlash | ≤3° | |
Bearing | Porous Bearing | Rolling bearing |
Axial endplay | ≤0.3mm | ≤0.2mm |
Radial loading on output shaft | ≤0.3N | ≤4N |
Operating temperature range | -20……+85℃ |
Motor specifications:
Motor specifications | |
Motors(Optional) | DC brush motor, Stepper motor,Coreless motor |
Voltage(Optional) | 3-12V |
Input speed | ≤30000rpm |
Current | 100MA max |
Motor Performance:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
OPERATING RANGE | RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | TORQUE | CURRENT | |
V | r/min | mA | r/min | mA | g.cm | g.cm | mA | ||
KG-13A050-01 | 2.0-6.0 | 2.5 | 52 | 19 | 40 | 66 | 118 | 528 | 230 |
KG-13A050-02 | 2.0-6.0 | 6.0 | 93 | 30 | 72 | 100 | 323 | 1650 | 360 |
Above specifications are subject to change without notice, just for reference and customizable according to requirements.
