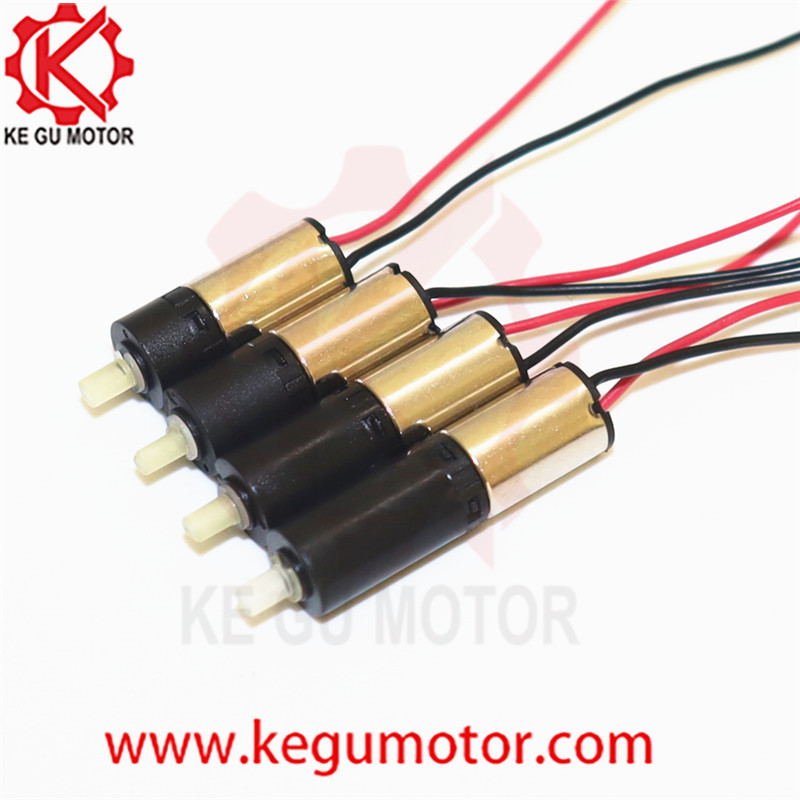

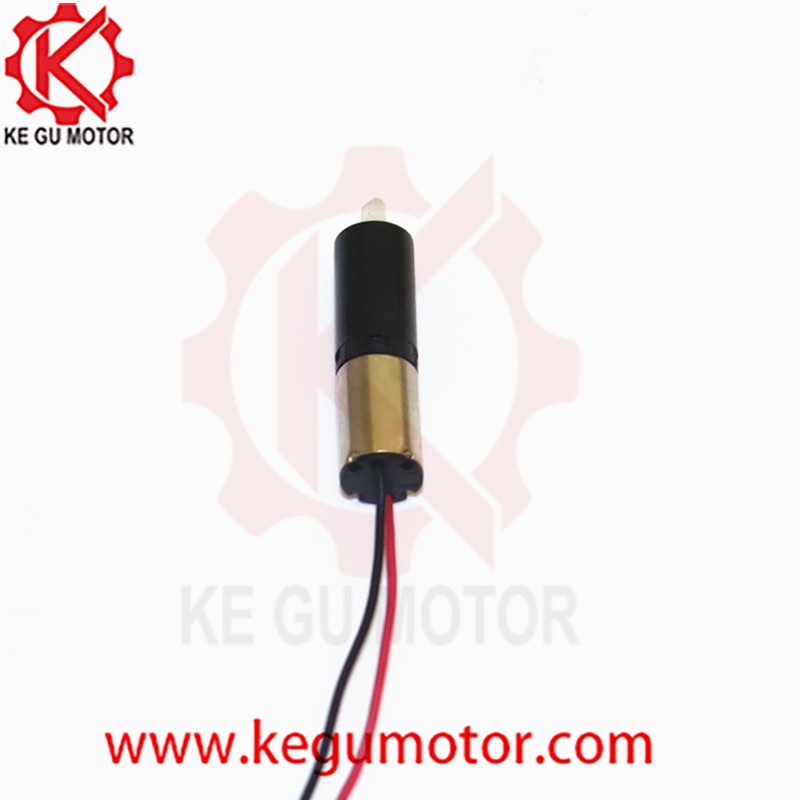

6mm Mini DC Gear Motor – 21mm Type Model KG-06P0610-01 Standard Shaft

Product Details:
Place of Origin: China
Brand Name: Kegu Motor
Certification: RoHS / ISO9001
Model Number: KG-06P0610-04
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiation
Packaging Details: TBD
Delivery Time: 30 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500kpcs/month

Product description:KG-06P0610 6mm plastic planetary gearmotor 21mm type 699:1
mini 6mm planetary reduction gearbox motor

6mm Mini DC Gear Motor – 21mm Type Performance

1. Rated Voltage: 3.0

2. No Load Speed: 46rpm
3. No Load Current: 60 mA
4. Rated Load Speed: 40 rpm

5. Rated Load Current: 100 mA
6.Rated torque:1.6g.cm
7.Gear ratio:699:1
8.Gearmotor length:21mm

Motor model:

KG-06P0610-01

L1 (Motor Body + Gearbox):

21mm

L2 (Motor Body):

9.3mm

Shaft Diameter:

2.0mm; D-section=1.5mm

Shaft Length:

2.7mm

Total Weight:

1.6g

Motor voltage range:

2.5-5.0V

Motor rated voltage:

3.0V

Motor speed (approx):

37,000 rpm

Gearbox number of layers

1

Gearbox gear ratio:

1:699

No load voltage:

3.0V

No load speed:

46 rpm

No load current (approx):

60mA

Output max torque (approx):

5g.cm

Features:

Mit 3 V und einer Untersetzung von 1:699 ist er für seine Größe erstaunlich kräftig. Im stationären Einsatz kann er durch unsere PWM ergänzt werden, um die Drehzahl fein regulieren zu können. Dadurch ist ein sehr gleichmäßig laufender langsamer Antrieb aufkleinstem Raum verfügbar. Dieser extrem kleine Motor mit Mikro-Planetengetriebe eignet sich hervorragend für Modellbau, Elektronik, Bastler usw. Im stationären Einsatz kann er duch eine PWM ergänzt werden, um die Drehzahl fein regulieren zu können. Betriebsspannung: 0,15…5 V-; Drehmoment: 200 g/cm; Drehzahl: 4…40 U/min; Übersetzung: 700:1; Maße Achse (LxØ): 5×1,5 mm; Maße Motor (HxØ): 22,9×6 mm


Miniature Geared Motor Outline Drawing

3v 700/1 6mm plastic gear motor

Gearbox Specifications of 6mm plastic gearmotor:

Outer diameter

6mm


Material

Plastic


Direction of rotation

cc&ccw


Gear backlash

≤3°


Bearing

Porous Bearing

Rolling bearing

Axial endplay

≤0.3mm

≤0.2mm

Radial loading on output shaft

≤0.3N

≤4N

Operating temperature range

-20……+85℃


Motor specifications:



Motor specifications


Motors(Optional)

DC brush motorStepper motor,Coreless motor

Voltage(Optional)

3-12V

Input speed

≤30000rpm

Current

100MA max



Motor Performance:


MODEL

REDUCTION RATIO

VOLTAGE

NO LOAD

AT MAXIMUM EFFICIENCY

STALL

OPERATING RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

OUTPUT

TORQUE

CURRENT

V

rpm

A

rpm

A

g.cm

W

g.cm

A

KG-06P0610-02

26.5/1

1.5~3.5

3.0

1200

0.038

530

0.125

20

0.11

36

0.195

KG-06P0610-01

6/1

1.5~4.0

3.0

6200

0.045

4669

0.010

1.6

0.06

30

0.195

KG-06P0610-03

136/1

1.5~3.5

3.0

240

0.045

92

0.136

100

0.09

165

0.195

KG-06P0610-04

700/1

1.5~3.5

3.0

46

0.045

35

0.081

180

0.06

726

0.195

6:1, which has a free run speed of 13,000 RPM and stall torque of 0.3 oz-in (22 g-cm) at 6 V

26:1, which has a free run speed of 2500 RPM and stall torque of 1.5 oz-in (110 g-cm) at 6 V

136:1, which has a free run speed of 500 RPM and stall torque of 8 oz-in (550 g-cm) at 6 V
700:1, which has a free run speed of 90 RPM and stall torque of 12 oz-in (900 g-cm) at 6 V

above specifications are subject to change without notice, just for reference and customizable according to requirements.

Shen Zhen Ke Gu Technology Co.,ltd provide small gearmotors have high performance for any industry. Best quality assured. Kegu-motor provides OEM & Custom gear motors. Varied custom sizes geared motors for the design of your prototype applications. You can get a free gearmotor quote by using bottom form, just tell us which geared motor model your are interested or tell us the torque, speed, reduction rito, voltage, size you need of the motors with gears, and you will receive a professional support in 24 hours.

Typical Application:
These 6mm precision gear motors are widely used in electronic rotating mascaras, robotic mechanisms, medical equipments, etc. The gearbox is made of plastic material, RoHS compliant. The gear ratio can be adjusted as per buyers’ requirements
