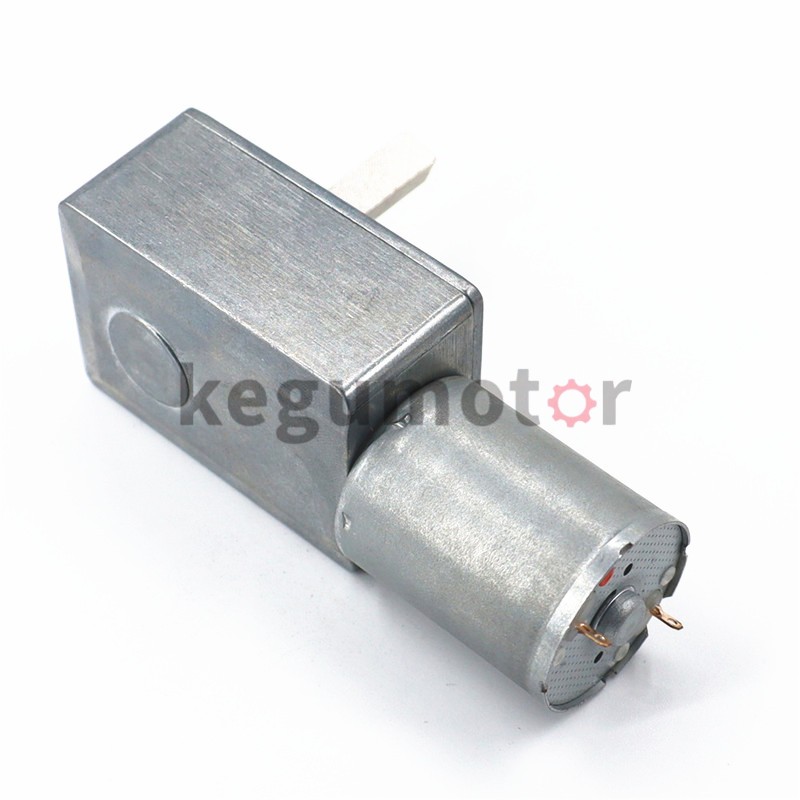

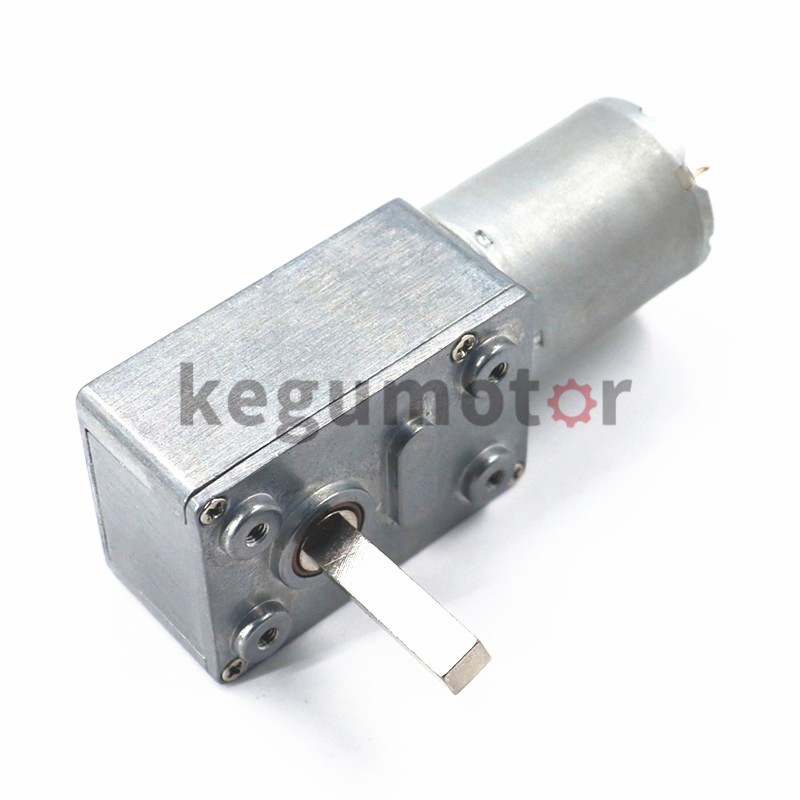

46mm right angle worm gear motor KG-4632Z370

Main features:

|- Model:KG-4632Z370
|- Structure: 370 motor integrated with compact metal worm gearbox;
|- Gearbox: metal worm gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 3 kgf-cm ;
|- Size : Φ12mm* L 33mm ;
|- Shaft : right angle 90° driveshaft, Φ3mm D-cut 0.5mm, O, M3, M4, custom;
|- Commutation: Carbon brush/precious metal brush;
|- Construction: Permanent Magnet iron cored motor;
|- Encoder: magnetic encoder 3ppr, 7ppr, 12ppr;
|- MOQ: 500 pcs

8.Gearmotor length:21.8mm

Features:

6mm plastic planetary gearbox

Output power 0.01-0.2W

CW/CCW Bi-direction

20/1-1030/1 reduction ratio

Coreless dc motor

Miniature Geared Motor Outline Drawing

Gearbox Specifications of 32mm metal worm gearmotor:

Motor specifications:

Above specifications are subject to change without notice, just for reference and customizable according to requirements.
